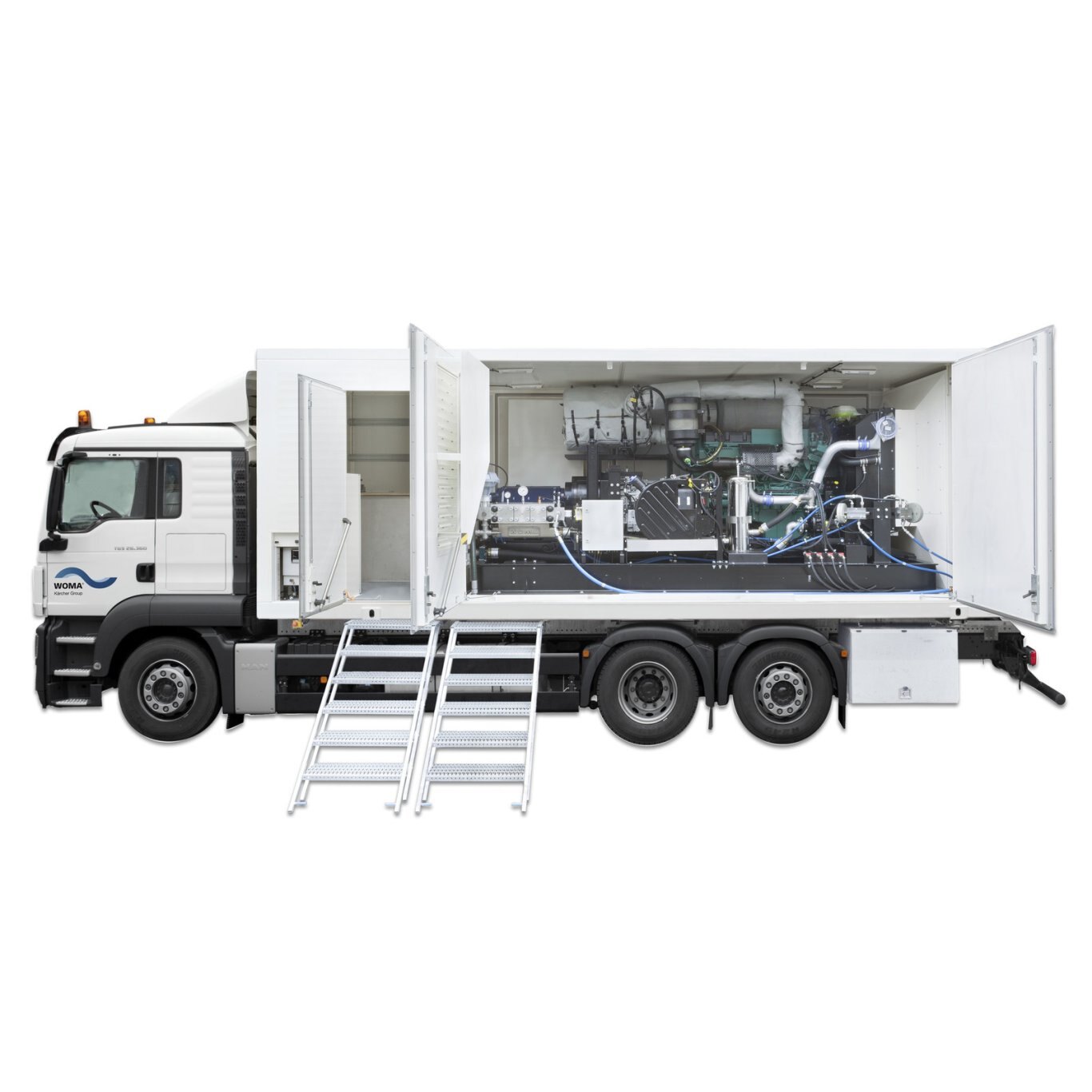

Karcher EcoMaster D 700Z ZWG

Call for Price
Overview

The EcoMaster ZWG is regulated by an integrated intermediate gear in a power range of 50 to 500 kW. This machine combines the complete range of high pressure applications in industry with an optimised fuel consumption.

The EcoMaster ZWG features a reliable, multi-stage intermediate gear with additional overdrive function. This enables the fuel consumption to be minimised due to working at a low engine speed. The right machine size is always available for every application. Using the overdrive function provides a remarkably low fuel consumption at maximum output. The machine can be operated at full power with optimal efficiency. Noise emission is considerably reduced due to the speed reduction of the engine. Shifting is conveniently controlled via a display and takes place without load during operation. The machine has a soft start function in idle mode, which protects the pump, increases the service life and reduces wear and tear. Specific power output and fuel consumption are constantly indicated to allow full control over operating costs.

Specifications
Model
EcoMaster D 700Z ZWG
Category Name
Professional
Year
2025
Sale Type
New
Manufacturer
Karcher
Motor Type
Diesel
Order Number
9.892-533.0
Weight Appr. (kg)
5420
Pump Capacity (kW)
484
Max. Flow Rate (l/min)
435
Max. Motor Rating (kW)
540
Max. Oper. Pressure (bar)
1500
Pump Rotation Speed (rpm)
1800
Dimensions Appr. (L X W X H) (mm)
3500 x 1920 x 2150
